Load current: 3A (water heating, gas boiler), 16A (electric heating)
Sensor: NTC3950, 10K
Accuracy: ±1°C
Temperature group: Range: 5-35°C
Constant greenhouse: Range: 5-99°C
Temperature display: Range: 5 to 99
Ambient temperature: 0 to 45°C
Ambient humidity: 5~95% RH (non-condensing)
Storage temperature: -10~45°C
Power consumption: <1.5W
Timing error: <1%
Shell material: ABS PC (fireproof)
Installation box: 86*86mm square box or European style 60mm round box
Wire terminal: 2 x 1.5 mm² or 1 x 2.5 mm² wire
Protection level: IP20
Keys: Capacitive touch keys
Protection function: over temperature protection
Electrical life: 100,000 times
Application: floor heating pad controller
Insulated paper: No insulated paper
Case material: flame retardant ABS
Connection mode: zero fire connection
Mechanical life: 100,000 times
Protection level: IP20
Contact material: copper inlaid silver
Packing list:
1* thermostat switch

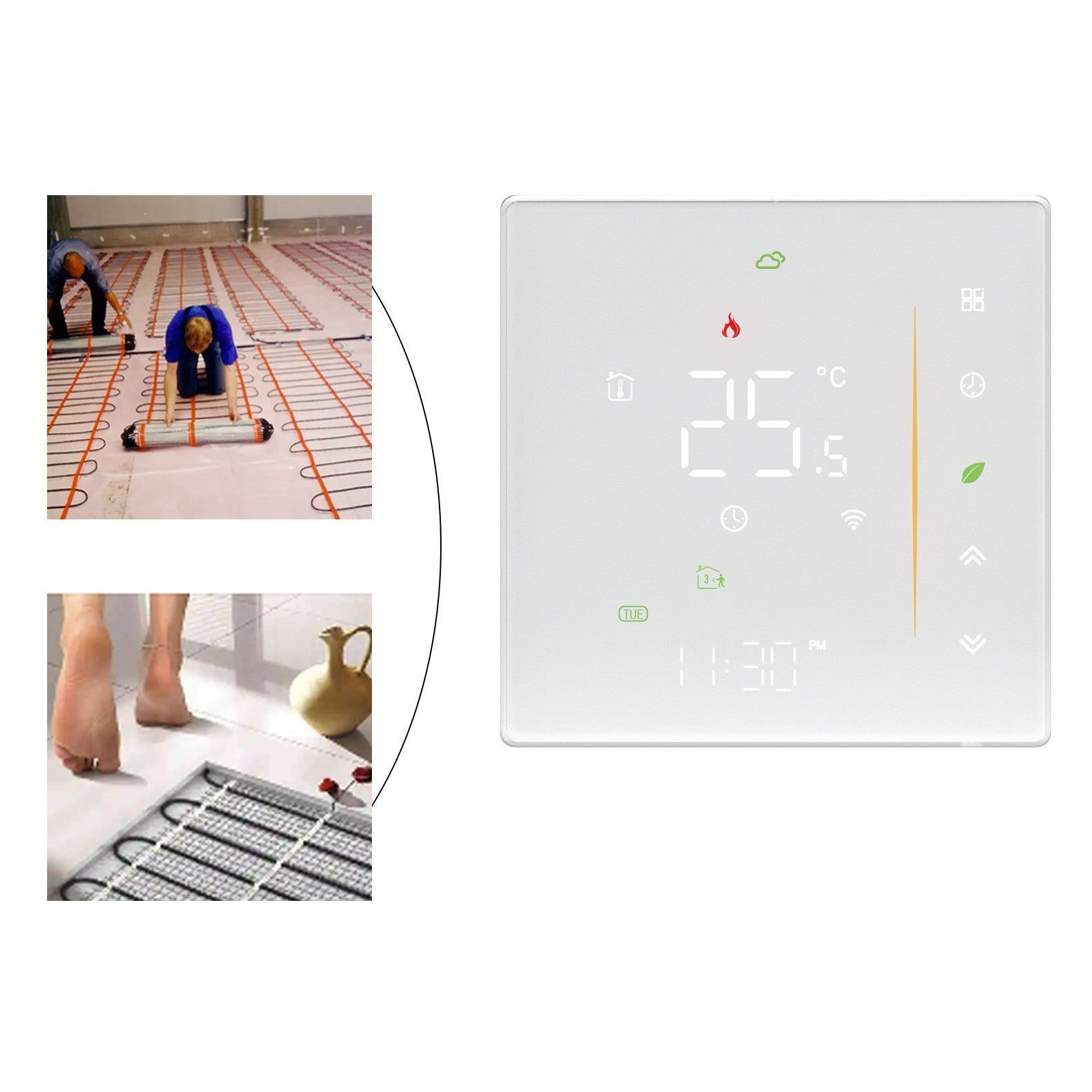

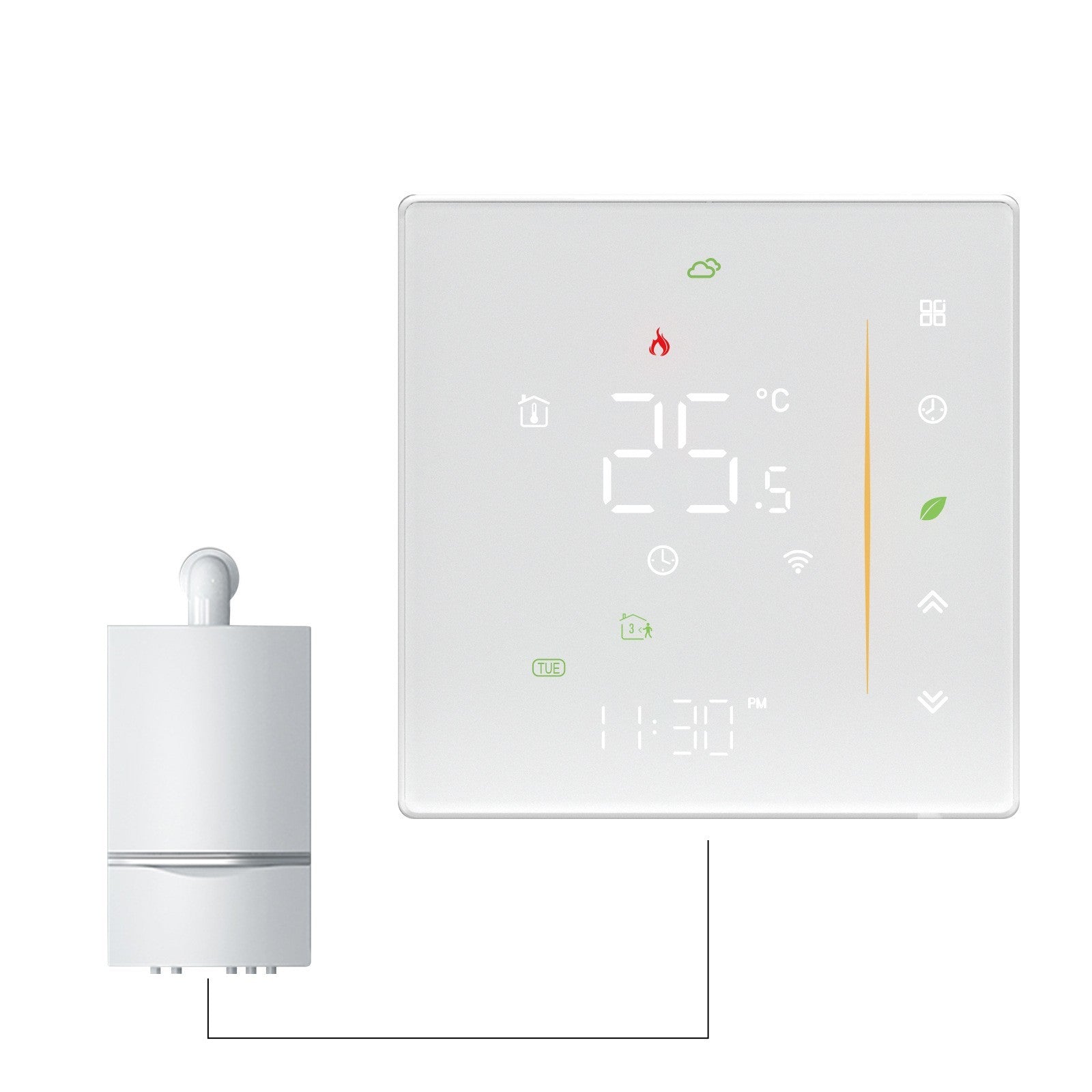

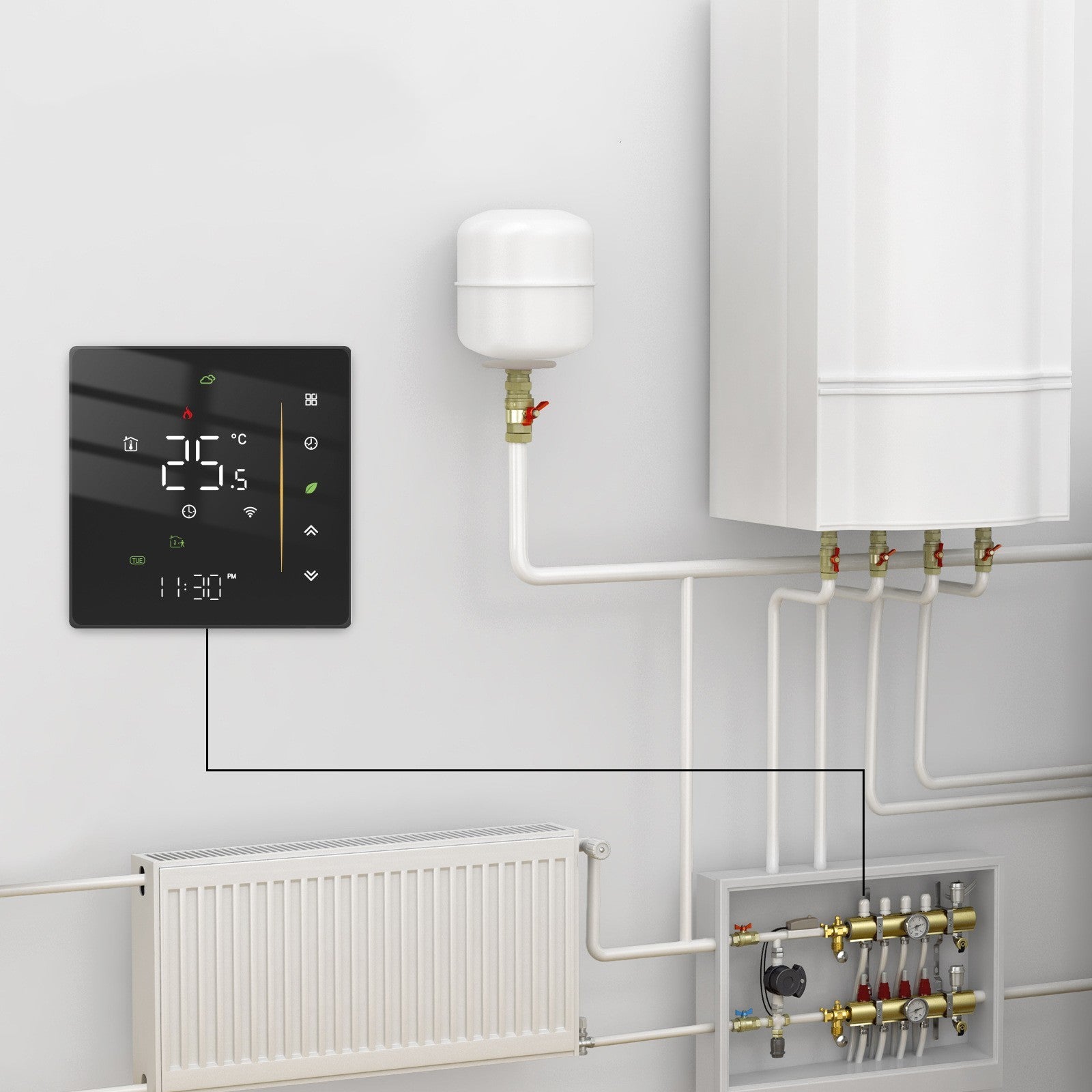

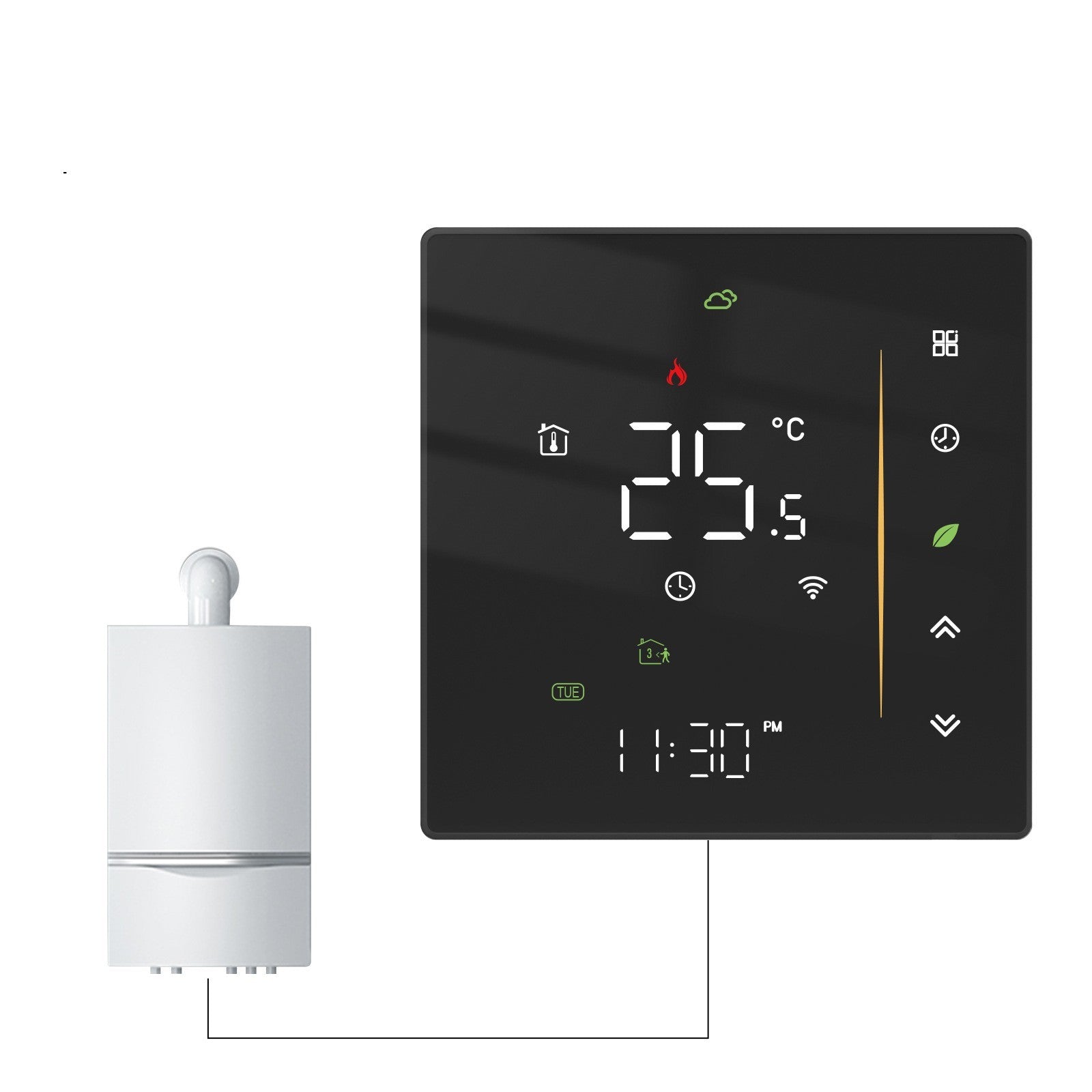

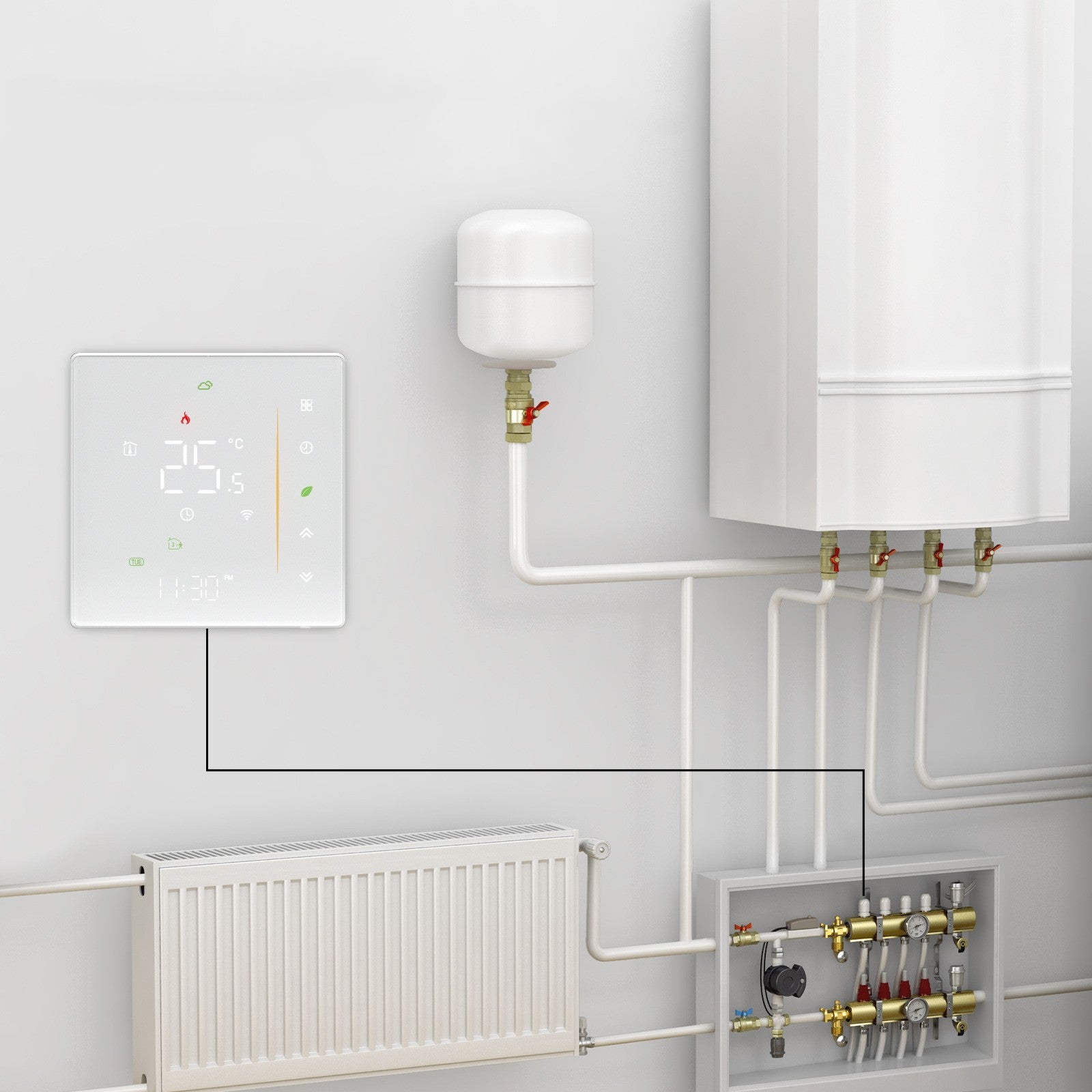

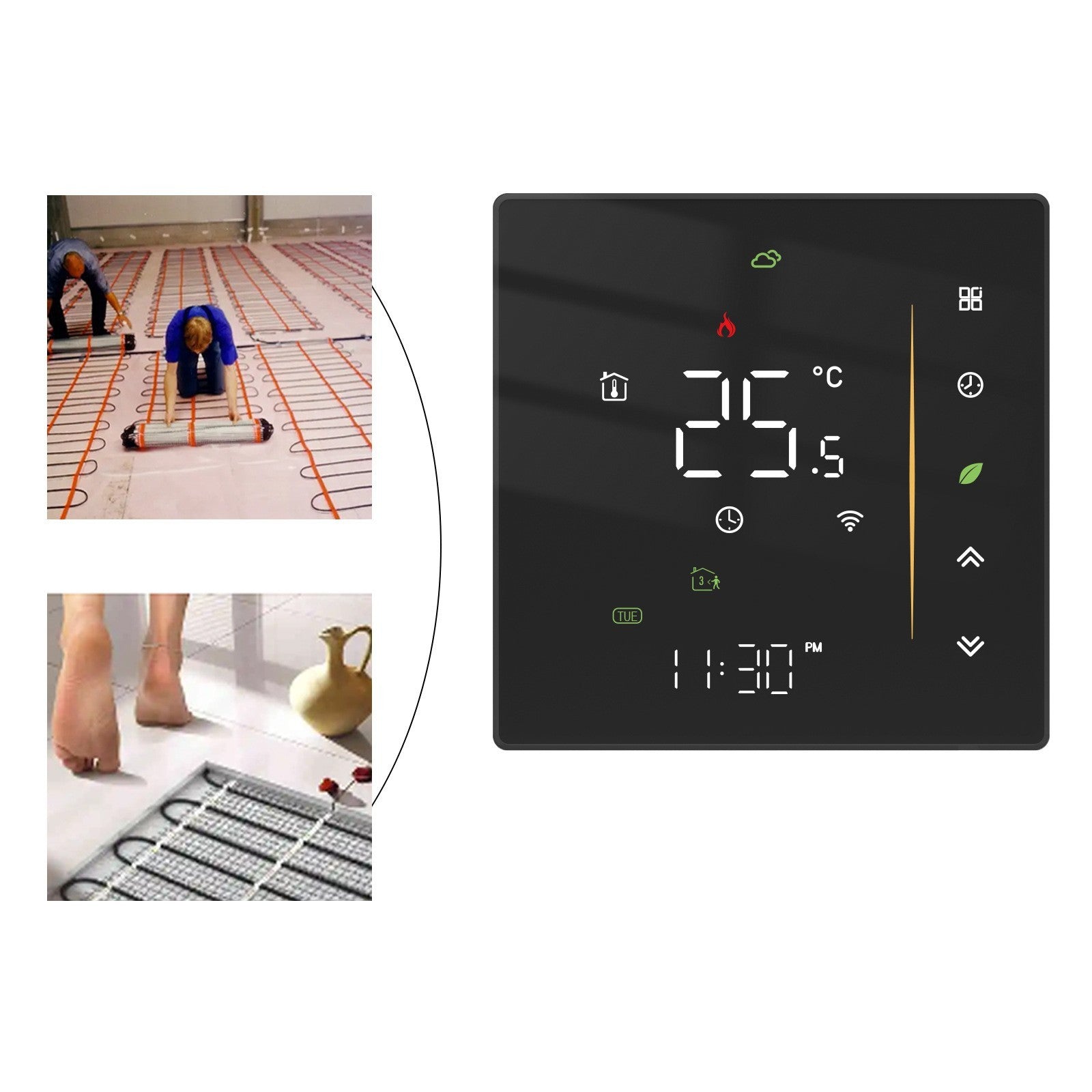

This intelligent thermostat switch is designed for energy-efficient control of floor heating systems, electric heaters, and gas boilers. With precise temperature sensing, capacitive touch keys, and a wide temperature control range from 5°C to 99°C, it ensures comfort and safety. Built with a flame-retardant ABS PC shell, IP20 protection rating, and over-temperature protection, it is reliable for both home and professional heating applications.

Constructed from fireproof ABS PC and copper inlaid silver contacts for durability and safety. Clean the outer surface with a soft, dry cloth. Do not expose to water or install in damp environments. Ensure professional installation for best results.
